How Does Plumbing in a House Work? A Homeowner’s Guide

Plumbing in a house can seem confusing because most pipes are hidden behind walls and floors. Many homeowners do not realize how much work it takes to bring water in and carry wastewater out.

Every home has two main plumbing systems. The pressurized water supply brings clean water in, and the gravity-fed drain-waste-vent (DWV) system carries wastewater out. Both systems are essential for a working home.

Understanding these systems makes it easier to notice small problems, like a slow drain or low water pressure, before they become costly. This guide explains how each system works, the main parts involved, and why knowing your plumbing matters.

Your home's plumbing consists of two distinct systems that serve opposite functions, and they never mix. These systems are the pressurized supply system and the gravity-fed drain system:

1. The Water Supply System: This is a pressurized system. It uses water pressure to push clean water through pipes to all your faucets and appliances, even on the second floor.
2. The Drain-Waste-Vent (DWV) System: This is a gravity-fed system. It utilizes the power of gravity to allow wastewater to flow downhill and out of your house, requiring no mechanical pressure

The water supply system is the network of pipes that delivers clean water to your home. We'll follow the path of water from its source outside your house to the faucet.

This is the pipe that brings clean water into your house from an outside source. Answering "Where does the water in my house come from?", your water comes from one of two main sources: a municipal water main (city water) or a private well on your property (which uses a pump to create pressure).

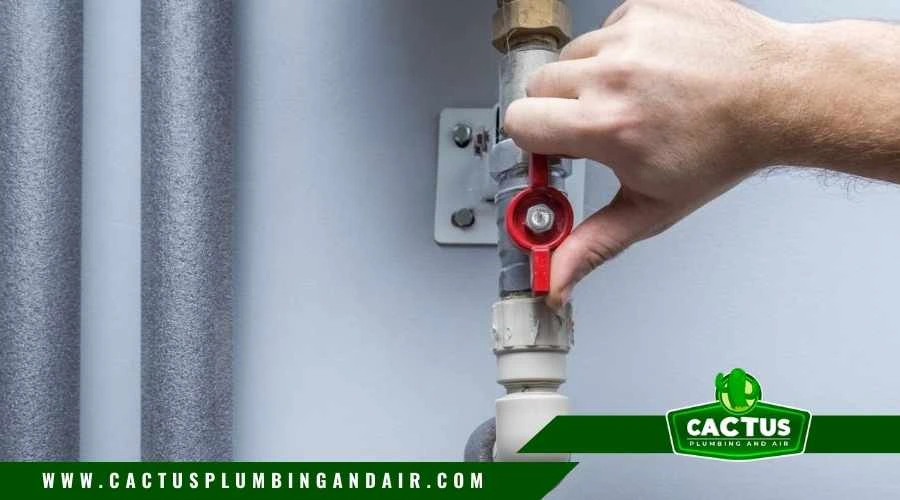

This is the most important valve you own, as it controls all the water coming into your house. The main water shutoff valve is the gatekeeper for your entire supply system.

Critical Homeowner Tip: You must know where this valve is. In a burst pipe emergency, this one valve shuts off all water to the house. It is often found where the main water line first enters your home, such as in a basement, crawl space, or utility closet.

After the water passes the meter and shutoff valve, the main line splits into two separate paths to distribute water throughout the home. This split provides both cold and hot water to your fixtures:

• Cold Water Line: Goes directly to all fixtures (toilets, sinks, showers, washing machine).
• Hot Water Line: Makes a crucial detour to one appliance: the water heater.

The water heater's job is simply to heat the water before sending it to all your hot taps. After the water is heated, it travels through the hot water line to all the same fixtures as the cold line (except toilets). The two main types are traditional tank heaters, which keep a large amount of water hot, and tankless models, which heat water on demand.

The water pressure in the supply system is what "pushes" water out of the tap when you open it. This pressure is maintained from the municipal source or your well pump. The material of your pipes (like copper, PEX, or older galvanized steel) can affect this pressure. Old galvanized pipes are known to rust from the inside, which can cause low water pressure and discolored water.

This entire system is 100% powered by gravity. For gravity to work, every drain pipe in your home must be installed with a specific downward slope to keep wastewater flowing out.

Drains are the entry point to the DWV system. They are the visible openings in your fixtures, such as the grate in your shower, the strainer in your sink, or the bowl of your toilet. When waste and water go down any fixture's drain, they begin their path into this separate, non-pressurized network of pipes. Each drain is engineered to channel water downward, connecting to a vertical pipe (like a tailpiece) that then directs the wastewater into the next part of the system: the P-trap.

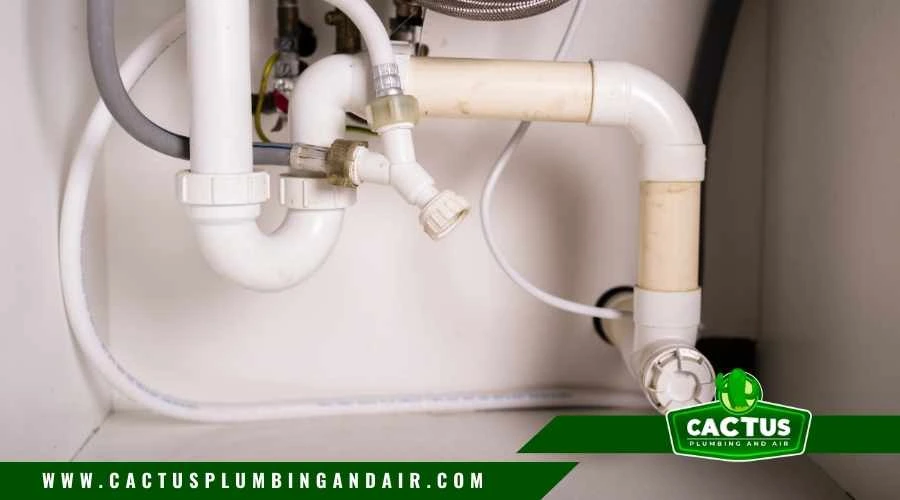

The P-trap is the U-shaped pipe under your sink, and it's a simple, brilliant invention. Answering "Why is there a U-shaped pipe under my sink?", its purpose is to block sewer gas.

How it Works: The U-shape is designed to hold a small plug of water at all times. This water plug creates an airtight seal. This seal blocks foul-smelling (and flammable) sewer gas from coming up the drain and into your home.

The vent stack is the "V" in DWV (drain-waste-vent) and is the pipe that usually goes through your roof. It answers the question, "Why does my plumbing need a vent on the roof?" by providing necessary airflow.

How it Works: Use this analogy: "Ever tried to pour liquid from a can with only one hole? It gurgles and ‘glugs' out slowly. But if you punch a second hole, it flows smoothly". The vent stack is the second hole for your plumbing. It allows air to be drawn into the pipes as water flows out, which prevents a vacuum, allows gravity to work efficiently, and stops the water in your P-traps from being siphoned away.

The main sewer line is the final exit path for all the wastewater in your house. It answers, "How does wastewater leave my house?". All the individual drain lines from your fixtures connect to this single, large, central pipe. This main line is also sloped, using gravity to carry all waste away from your house and to the city sewer system or a private septic tank.

In addition to water, "plumbing" often includes natural gas lines, which are a completely separate system. These pipes are responsible for safely delivering natural gas to appliances like gas water heaters, stoves, and furnaces.

Key Point: This is a separate, sealed system. Unlike DIY drain cleaning, gas lines should only be serviced by a licensed professional. If you smell gas, leave the house and call 911 or your gas company.

Understanding your home's plumbing comes down to knowing its two main systems. The pressurized water supply system delivers clean water to your fixtures, while the gravity-fed drain-waste-vent (DWV) system safely removes wastewater. Knowing the basics of how these systems work can help you spot small issues before they become big problems. If you have questions about your home's plumbing, our expert plumber in Glendale at Cactus Plumbing and Air is here to help.

Have Questions About Your Home's Plumbing? Schedule an Inspection with Our Experts.

Your home's plumbing is split into two main systems: the water supply system, which is pressurized and brings clean water in, and the drain-waste-vent (DWV) system, which is gravity-fed and removes wastewater.

Your water comes from one of two sources: either a municipal water main (if you have "city water") or a private well on your property (which uses a pump to create pressure).

The plumbing vent allows air to enter the drain pipes. This prevents a vacuum from forming, which lets water flow out smoothly (powered by gravity) and stops water from being siphoned out of your P-traps.

That U-shaped pipe is called a P-trap. Its job is to hold a small plug of water at all times. This water acts as a seal to block foul-smelling (and flammable) sewer gas from coming up the drain and into your home.

All the drains in your house slope downward and connect to a large, central sewer line. This main line is also sloped, using gravity to carry all wastewater away from your house to either the city sewer system or a private septic tank.
